Name: TR-71nw Temperature Data Logger
Brand: Tech Instrumentation
SKU: sku-12133441153
Price: 207.0 USD
Availability: OutOfStock

Get an Extra 2% Off Total Order

00 Days

00 Hours

00 Minutes

00 Seconds

Product information

Brand Tech Instrumentation

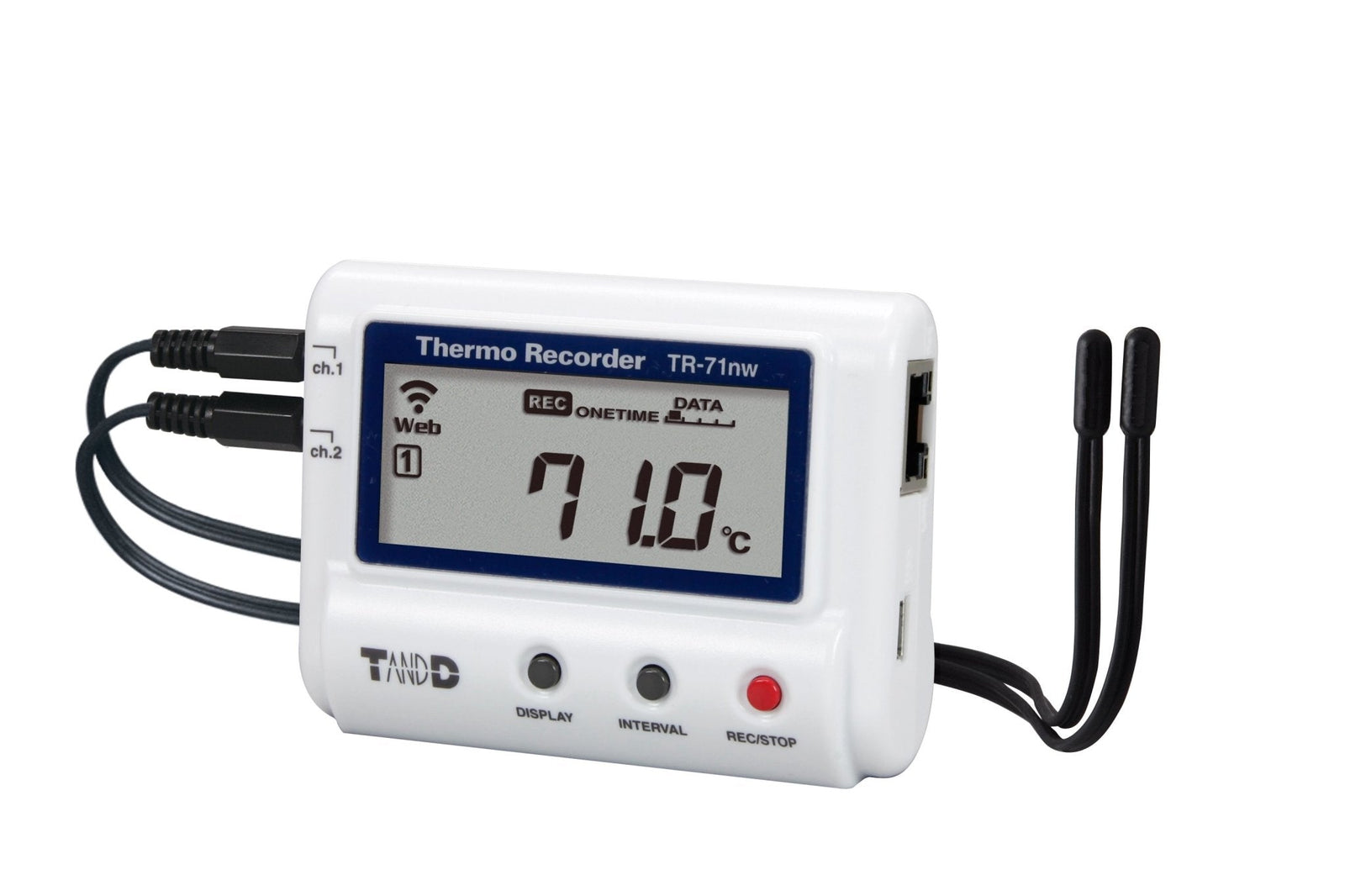

Title TR-71nw Temperature Data Logger

Closeout. Brand New. All sales are final.

The TR-71nw is a temperature data logger that can monitor two temperature zones, while the TR-72nw is a temperature/humidity logger. By using T&D WebStorage Service, a cloud service provided by T&D free of charge, it is possible to access stored data anytime from anywhere.

Power Over Ethernet: PoE IEEE 802.3af (TR-71nw or TR-72nw only)

Meets or exceeds CDC requirements for VFC plus automated record keeping and real time monitoring.

Sensor		Thermistor (Internal / External)
Measurement Channels		Temperature 2ch (Internal 1ch / External 2ch)
Measurement Units		°C, °F
Measurement Range	Internal Sensor	-10 to 60°C *1
Measurement Range	External Sensor	-40 to 110°C (Supplied Sensor) -60 to 155°C (Optional Sensor: Fluoropolymer Coated Type)
Accuracy		Avg. ±0.3°C at -20 to 80°C Avg. ±0.5°C at -40 to -20°C / 80 to 110°C
Measurement Resolution		0.1°C
Responsiveness		Thermal Time Constant: Approx. 75 sec. Response Time (90%): Approx. 190 sec.
LCD Display Items		Measurements (fixed or alternating display), Battery Warning Mark, etc.
Logging Capacity		8,000 data sets (One data set consists of readings for all channels in that type of unit.)
Recording Interval		Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.
Recording Mode		Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full)
Auto-upload Interval		Select from 15 choices: OFF (No auto-upload), 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs.
Communication Interfaces	Wireless LAN Communication TR-7wf	Standard: IEEE 802.11b Security 2: WEP (64bit/128bit), WPA-PSK(TKIP), WPA2-PSK(AES) WPS 2.0: Push Button Configuration Protocol: HTTP 3, DHCP, DNS
	Wired LAN Communication TR-7nw	100BASE-TX/10BASE-T (RJ45 Connector) Protocol: HTTP *3, DHCP, DNS
	USB Communication TR-7wf/nw	USB 2.0 Mini-B connector
Power *4		Battery: AA Alkaline × 2 (AA Ni-MH batteries may also be used) External: USB Bus (5V 200mA), AC Adaptor (AD-05A2 or AD-05C2), PoE IEEE 802.3af (TR-7nw only)
Battery Life *5		With LAN communication: Approx. 10 days to 1.5 years *6 Without LAN communication: Approx. 1.5 years
Dimensions		H 58mm × W 78mm × D 26mm
Weight		TR-7wf: Approx. 55 g TR-7nw: Approx. 65 g
Operating Environment		Temperature: -10 to 60°C *7 Humidity: 90%RH or less (no condensation)
Accessories *8		Temperature Sensor (TR-0106) × 2, AA Alkaline Battery (LR6) × 2, Registration Code Label, USB Mini-B Cable (US-15C), Manual Set (Warranty Included)
Software		PC Software: TR-7wf/nw for Windows, T&D Graph, T&D Data Server Mobile App: T&D Thermo
Compatible OS *9	PC Software	Microsoft Windows 10 32/64bit Microsoft Windows 8 32/64bit Microsoft Windows 7 32/64bit Microsoft Windows Vista 32 bit SP1 or later (T&D Data Server not compatible)
Compatible OS *9	Mobile App	Android OS, iOS
Display Languages *10		English

*1：For TR-71wf: When wireless LAN communication is used frequently, the measurement of the internal sensor may rise by around 0.3°C.
For TR-71wf and TR-71nw: When using external power, the data logger itself generates heat and the internal sensor will report a temperature much higher than ambient; we recommend using an external temperature sensor in this case.
*2: The WPS feature is not available when WEP(64bit/128bit) or WPA-PSK(TKIP) is selected in Access Point Settings. If you wish to use the WPS feature, please select WPA2-PSK(AES) or disable wireless security.
*3: HTTP client. Proxy supported (for firmware version 1.05 or above for TR-7wf).
*4: When using external power, the internal temperature of the logger rises.
*5: Battery life varies depending upon multiple factors including frequency of communication, LAN environment, ambient temperature, recording interval, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
*6: Approx. 10 days when Auto-upload Interval is 1 min, 1 yr when 1 hr, 1.5 yrs when 12 hrs or more.
*7: -10 to 45°C when using external power. (for TR-7nw)
*8: Software is not included in the package, but can be downloaded free of charge from tandd.com.
*9: For installation, it is necessary to have Administrator (Computer Administrator) rights.
*10: We recommend using an operating system in the same language as the display language. Operation in different languages is not guaranteed.
