Robotic Arm for Chasing M2 For Underwater Drone

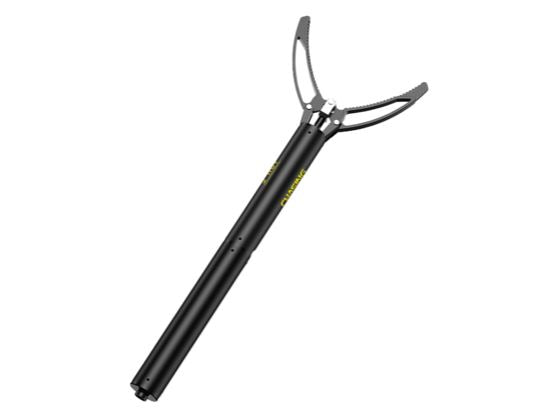

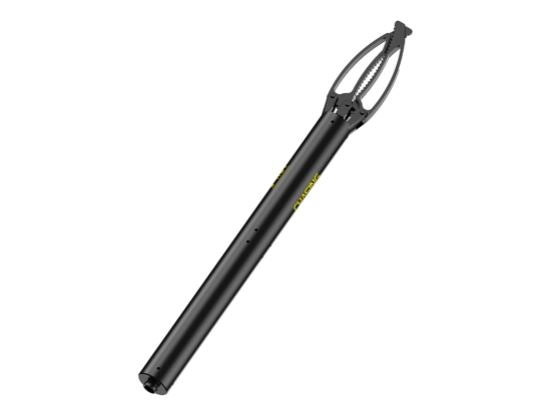

Robotic Arm for Chasing M2

CHASING Grabber Claw is small and easy to install. The maximum drag force is 12 kg and the force is adjustable. It is suitable for multiple uses such as sampling detection.

With maximum 6kg clamping force and 12kg drag force, the grabber claw can easily complete underwater operations. Adjust different forces on the App to avoid damage to the clamped items.

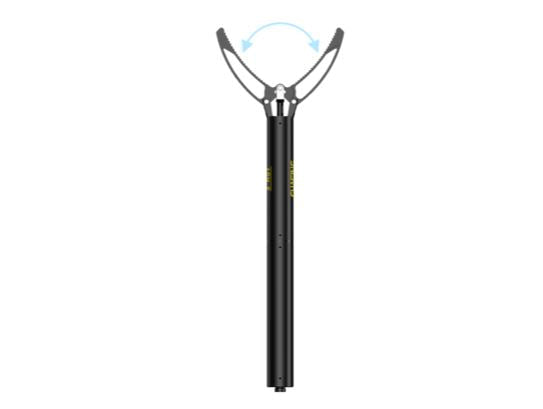

With a 120mm opening and closing distance and a 2.8-second single opening and closing time, the grabber claw operates smoothly and can grab a variety of items.

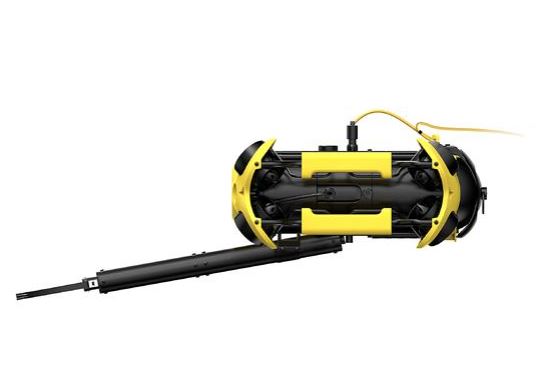

The holder increases the angle between the grabber claw and the underwater drone by 10°, avoiding the obstruction of the view and enhancing the experience of the operation effectively.


Aluminum alloy material, using 4-core watertight connector of underwater drone, length 460mm, diameter 33.5mm, compact and portable.

• • 1 x Robotic Arm for Chasing M2

• Size
  460 x 33.5 mm

  Weight:
  370g

  Weight in Water:
  50g

  Max Grasping Force:
  6kg

  Max Drag Force:
  12kg

  Opening and closing distance:
  120mm

  Max Depth:
  100 meters

  Single Opening / Closing Time:
  2.8s

  SKU
  CRA01

  UPC
  843722100166
