Lignomat MD-1 mini-Ligno MD/C Moisture Meter with Pins

For woodworking, hobbyists and all basic moisture meter uses. Accurate, reliable and affordable, to measure the moisture in wood with mini-Ligno MD/C.

• A measuring range low enough to check hardwood floors (6%)
• A high measuring range for wood up to 25%.
• 2 settings for wood species corrections: hardwoods, softwoods and panel products
• A bright, light-emitting numeric display readable even in poorly lit areas
• The red LED display is virtually indestructible, has a life-time warranty
• Display indicates moisture in 1% steps
• Auto shut off to save battery power.
• Built-in automatic calibration check before each measurement to guarantee accurate readings for the life-time of the meter.

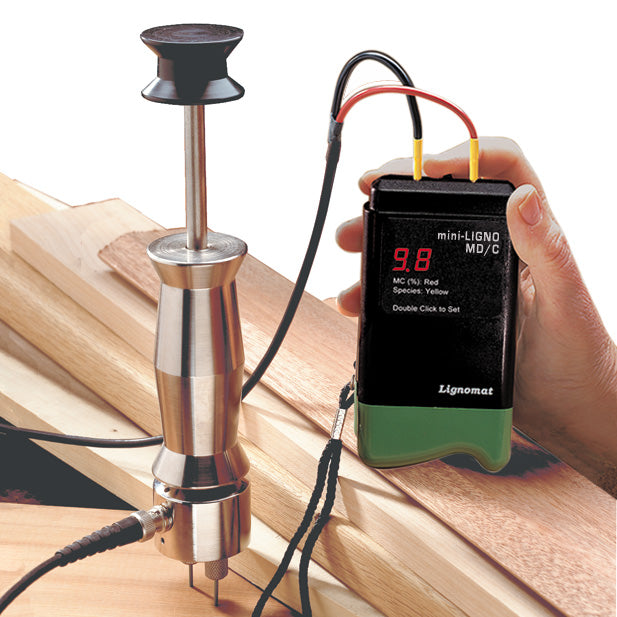

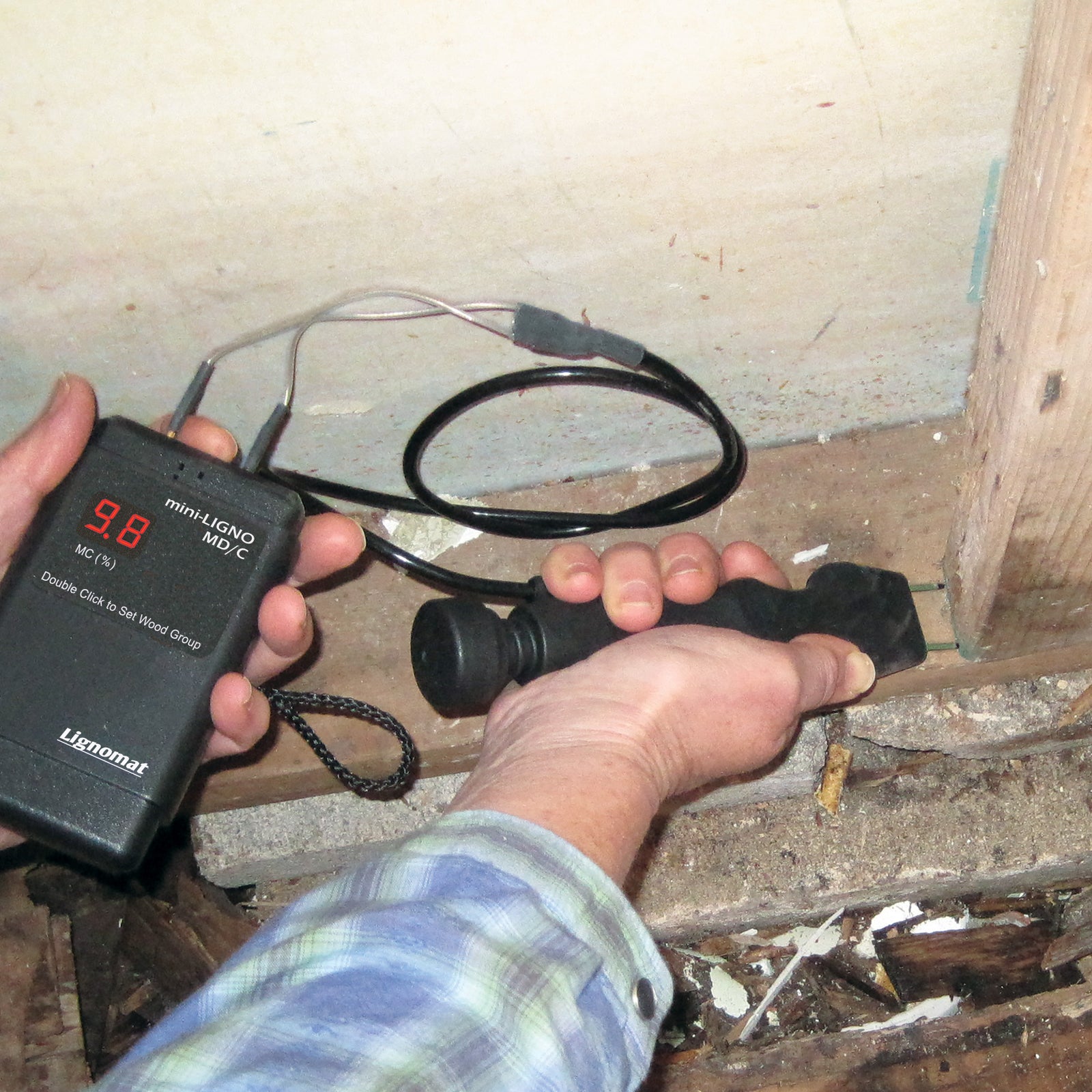

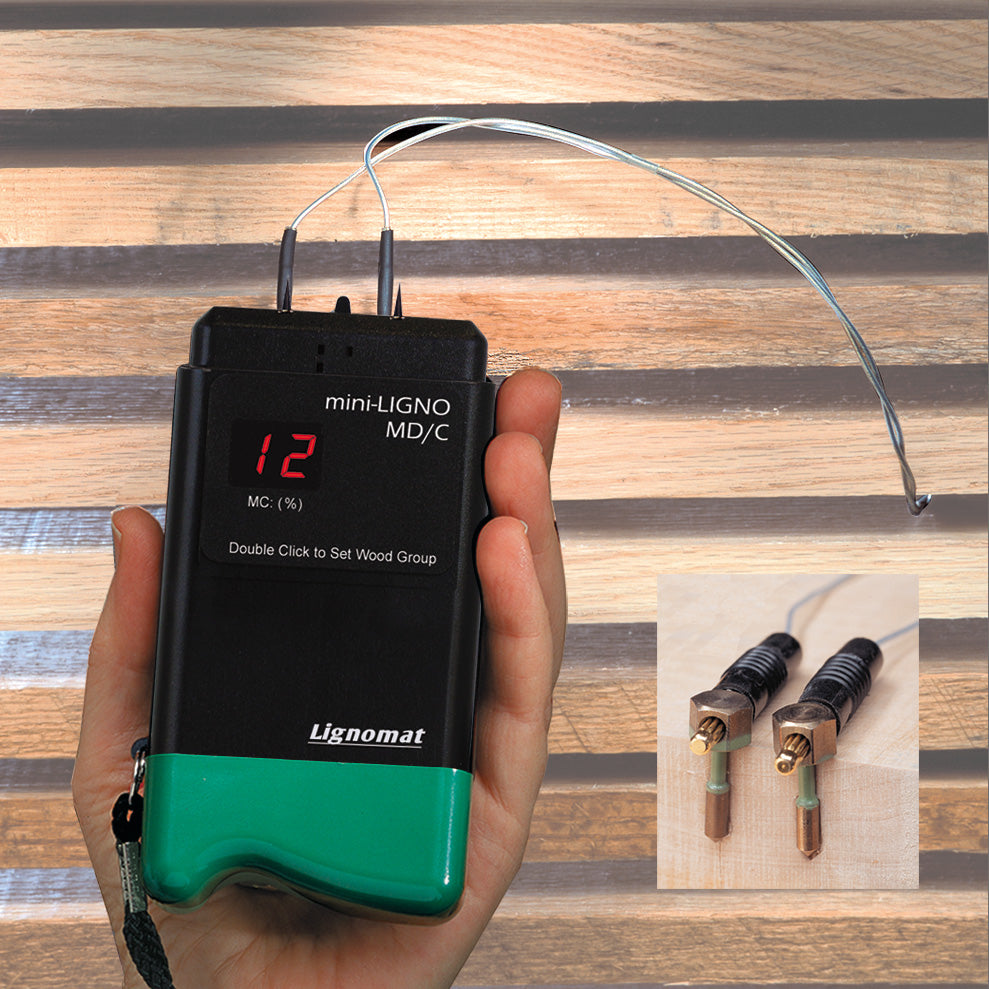

• Connection for external cables and electrodes. Attachments allow reaching areas, which the built-in pins cannot reach
• External cables and electrodes sold separately

An easy-to-use, reliable instrument.

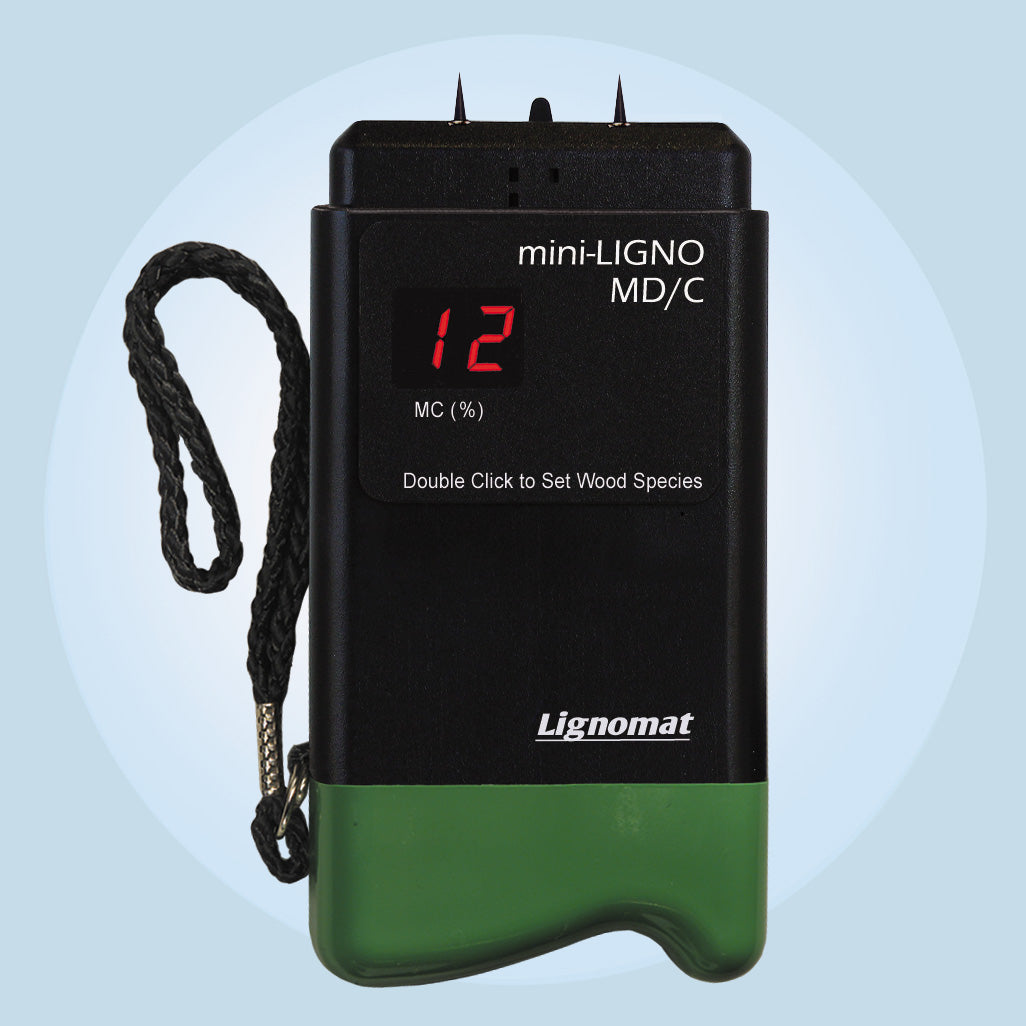

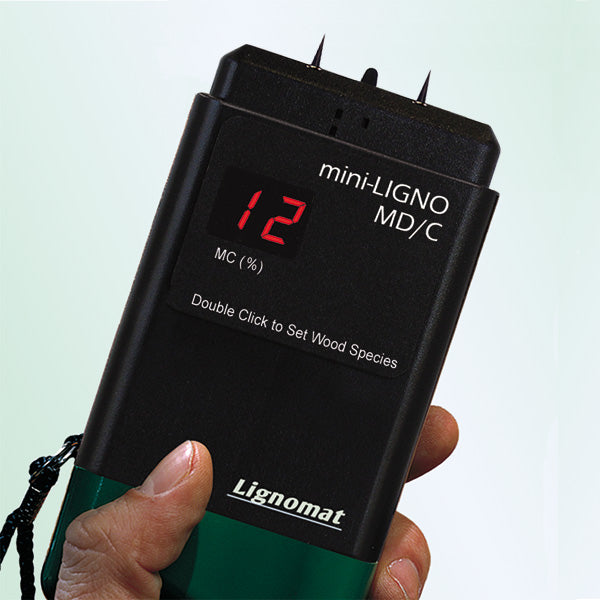

The functionally designed meter fits comfortably in your hand when measuring and is small enough to carry in a shirt-pocket. The green cap covers the pins during transportation and serves as a handle when pushing the pins into wood. This unique design allows pushing behind the entire meter to insert the tapered pins easily. Each mini-Ligno comes with a set of longer pins for measuring deeper. The longer pins are stored inside the meter. The short pins are ideal for surface or end cut readings and for veneer.

Measurements: As you push the pins into the material to be measured, the unique on-off switch between the pins, turns meter on automatically and bright LED lights instantly indicate moisture percentage. The LED display is virtually unbreakable and comes with a life-time warranty. No hassle ever with a broken display! Automatic on-off switch extends battery life.

Each mini-Ligno comes with a set of
#MA Pins for a measuring depth of 3/16″ (5mm) and
#MB Pins for a measuring depth of 7/16″ (10mm).
