CHASING M2 PRO Max Industrial-Grade Underwater ROV
Chasing M2 Pro Max is an industrial-grade ROV, which is designed for government and enterprise users and adopts a new generation accessory mounting mode, a new generation accessory quick assembly and disassembly technology, a new generation shorebase power supply system and a new generation floodlight design, so as to provide industrial customers with more user-friendly, more professional and more reliable underwater ROV solutions.
New Generation Mounting Method, to Unlock Infinite Possibilities
The M2 Pro Max adopts slide-in accessory assembly and disassembly technology, and can quickly complete the installation and disassembly of accessories, which is convenient to use and saves both time and effort.
4K + EIS Camera, to Restore Natural Color
CHASING M2 PRO MAX camera supports up to 4K video/12 megapixels photos, and is equipped with 1/2.3 Sony CMOS and EIS function to clearly capture every detail underwater and truly restore the natural color underwater.
200m Diving Depth, Wider Operation Range
The maximum diving depth is 200m and the maximum movement radius is 400m. With different lengths of tethers, the ROV can meet needs of more application scenarios and be operated in a wider range.
SPECIFICATIONS
ROV
Size 608 x 294 x 196 mm (Excluding the floodlight)
Weight ≈8 KG
Maximum Depth 200m
Pull (forward / drift upwards / traverse) 5.7 / 4.0 / 3.6 KG
Maximum Battery Life ＞4h
Battery 302.4Wh
Operating Temperature -10 ℃ ~ 45 ℃
E-Reel
Size 296x189x279 mm
Weight 3.5 KG
Max Storage Length 200 meters
Battery Capacity 4800 mAh
Number of Cycles >300 times
Runtime 30 times
Wiping Speed 3 gears
Take-Up Speed (200m) Fast speed 220 s Low speed 9 min
Operating Temperature -10℃~45℃
Charging Time 2 H (12 V ) / 4 H (25.2 V)
Remote Controller
Size 160 x 155 x 125 mm
Weight 685 g
Battery Capacity 2500 mAh
Battery Life ≥6H (Depend on working condition)
Wi-Fi Support
HDMI support
USB support
Phone / Tablet Clip Maximum support 10 inches
LED Lights
Brightness 2 x 4000 lm
Color Temperature 5000 K ~ 5500 K
CRI 85
Dimming Three adjustable
Sensor
IMU Three-axis gyroscope acceleration compass
Depth Sensor ＜±0.25 m
Temperature Sensor ＜±2 ℃
Adapter
Adapter 8 A / 25.2 V
ROV Charging Time 2.5 H
Remote Controller Charging Time 2 H
Camera
CMOS 1/2.3’’
Aperture f/1.8
Focal Length 0.3m~∞
ISO Range 100-6400
Field of View 150°
Maximum Image Resolution 12 M
Image File Types JPEG / DNG
Normal Video UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps
Slow Motion Video 720p: 8x (240fps) 1080p: 4x (120fps)
Time-Lapse Video 4K / 1080p
Video Maximum Stream 60 M
Video Type MP4
Micro SD Card Memory 128 G

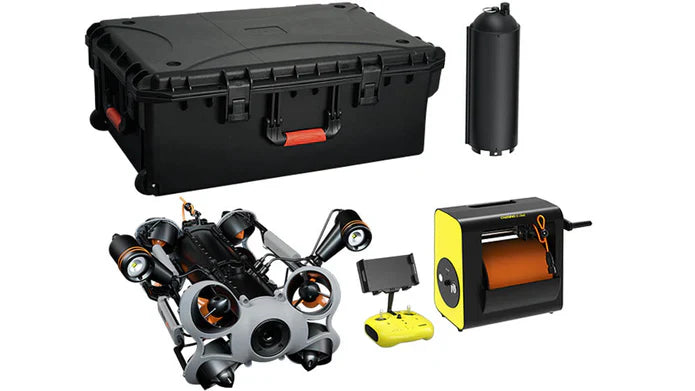

What's in the box:

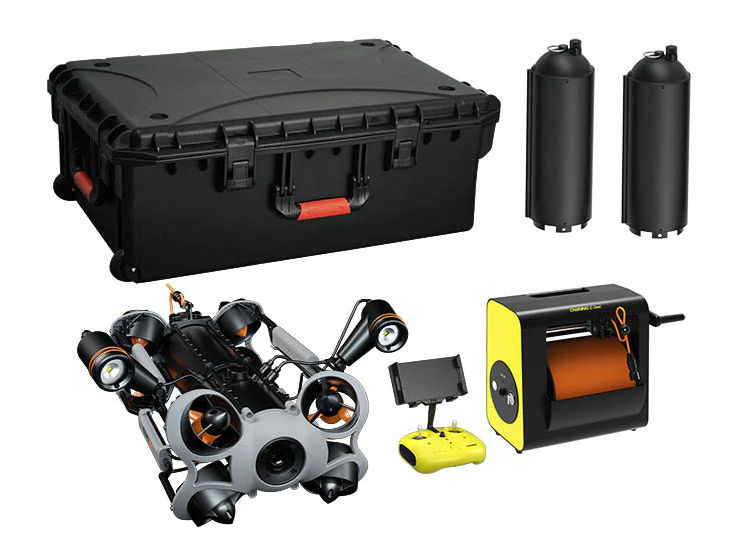

Advanced Set:
- Standard Package + 300Wh Extra Battery + 200 m Cable (with E-Reel)

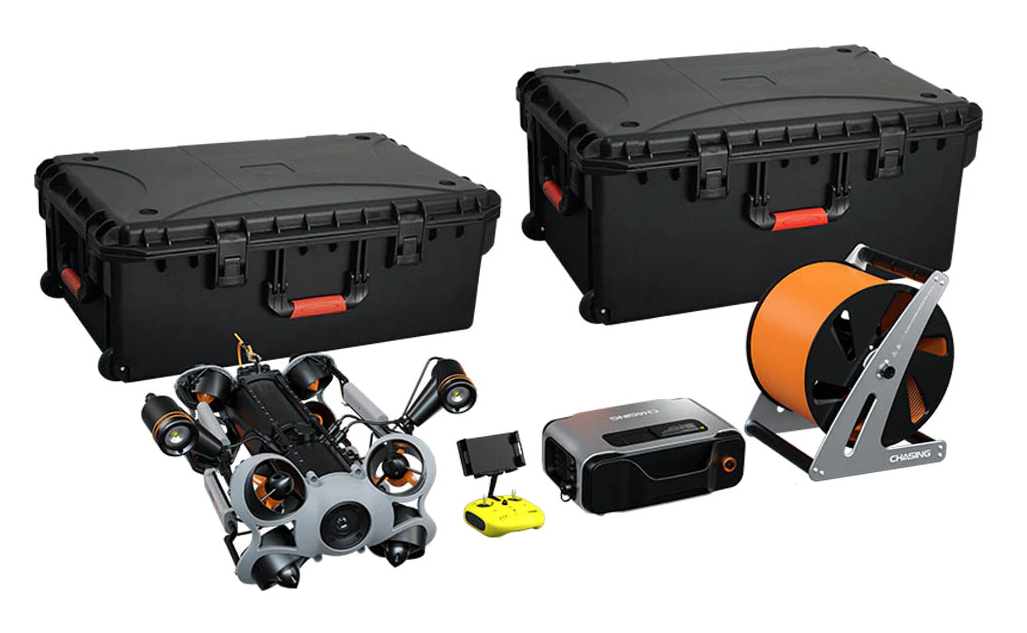

Professional Set:
- Standard Package + C-SPSS Shored Power System (this package does not have any additional battery or reel)
