High-Precision Plasma Cutter – Powerful, Reliable, and Easy to Use
Key Features:
Powerful Cutting Capability
- Employs advanced plasma cutting technology for precise and clean cuts.
- Compatible with various metals, including steel, stainless steel, aluminum, brass, and copper.
- Cuts up to a maximum thickness of 5/8" (16mm) at 220V voltage and 60psi air pressure, ensuring versatility for different metal thicknesses.
Enhanced Cutting Performance
- Powered by IGBT technology, delivering:
-
High frequency and high voltage for seamless operation.
- Stable performance even during heavy-duty tasks.
- Operates on 110V/220V dual voltages, adapting to diverse power environments effortlessly.

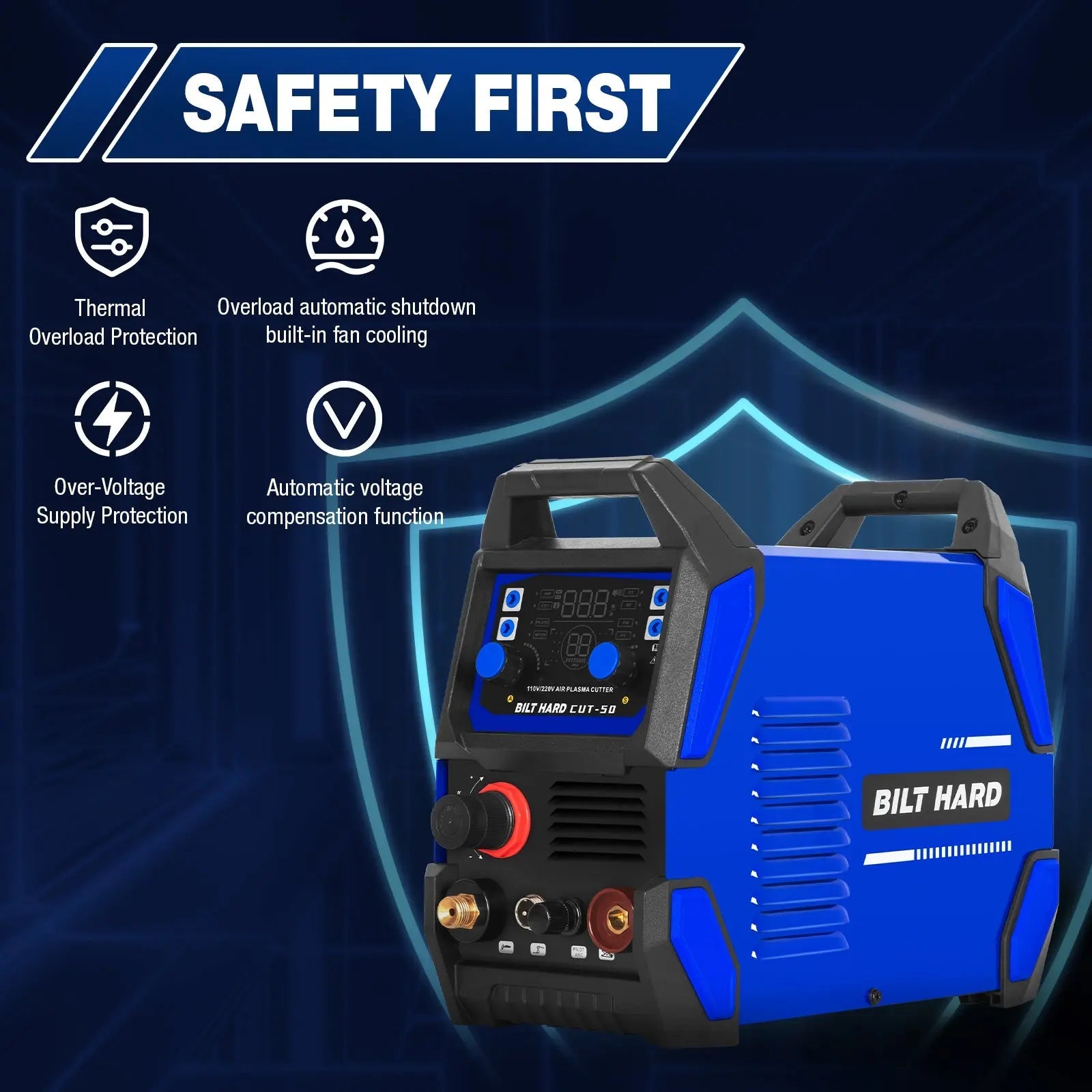

Reliable Safety Features
- Advanced insulation minimizes the risk of electric shock.
-
Overheat protection automatically stops operation to protect components when temperatures rise.
-
Automatic voltage compensation ensures stability under fluctuating power supplies.
- Built-in safety valve mitigates gas hazards for secure use.
- Comes with clear safety guidelines to enhance user confidence and proper handling.
User-Friendly Design
- Intuitive control panel for quick adjustments of current and air pressure.
-

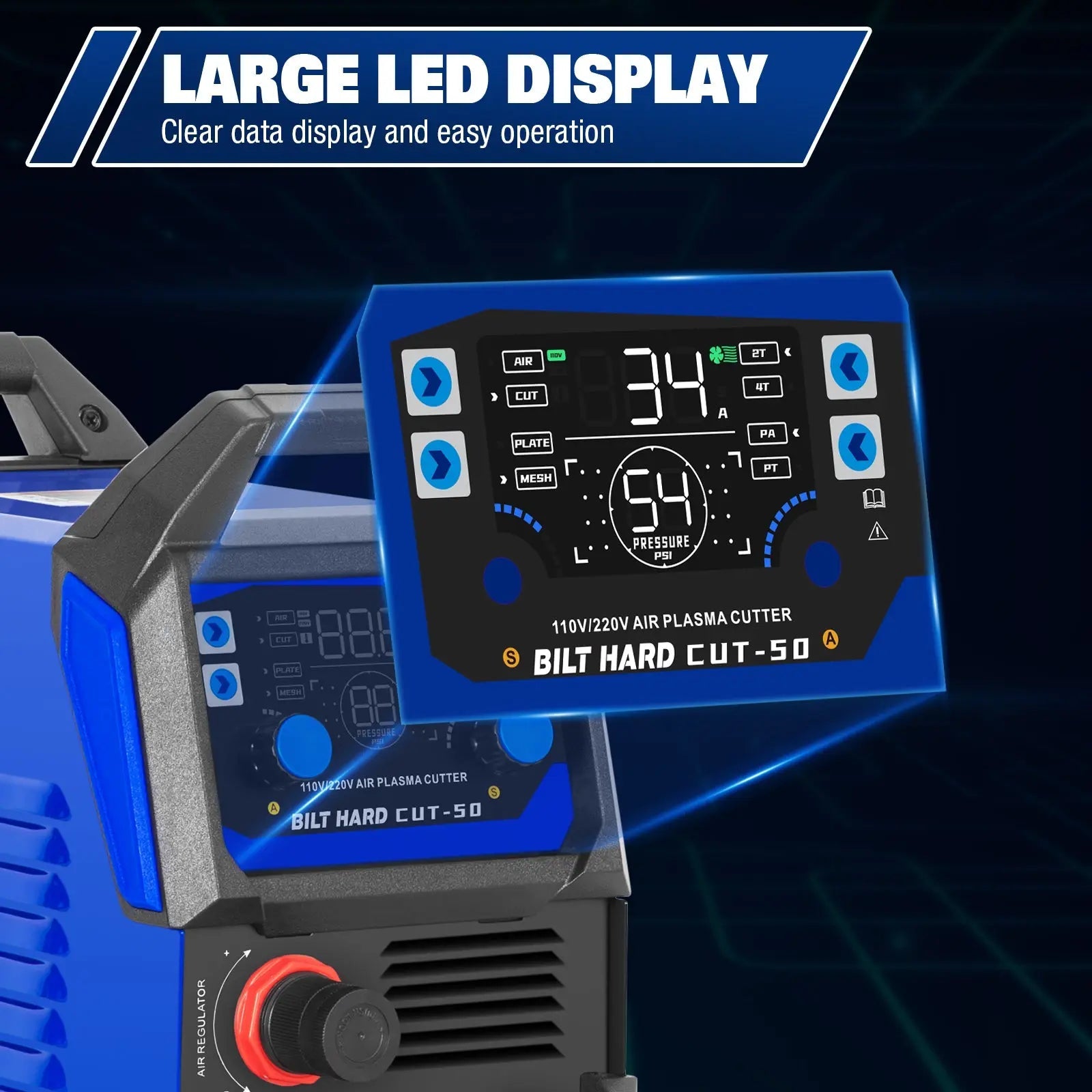

LED display provides real-time monitoring of parameters.
- Simple torch trigger and user-friendly connection ports make setup and operation hassle-free.
- Suitable for both beginners and professionals seeking precise and high-quality cuts.

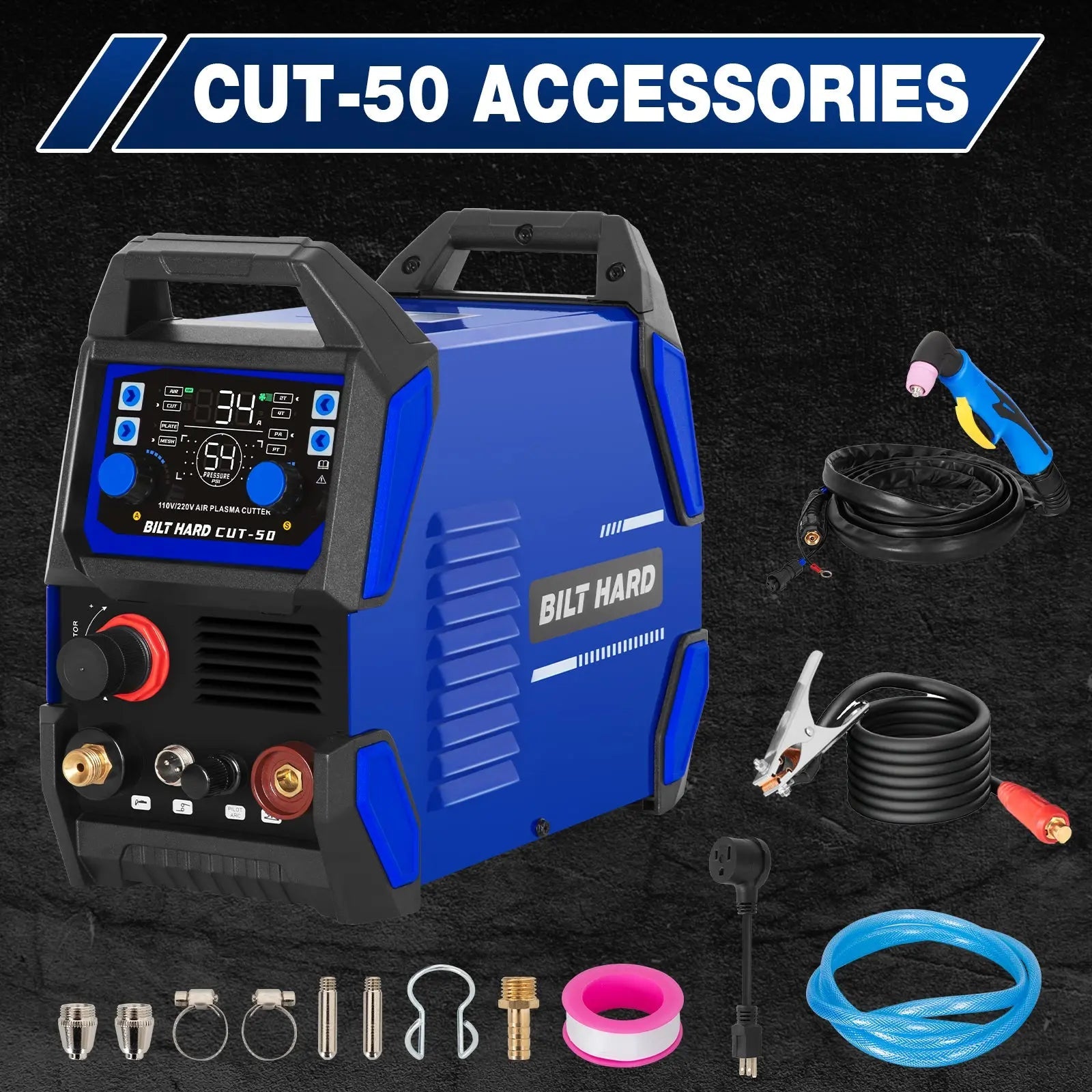

Comprehensive Package Includes
-

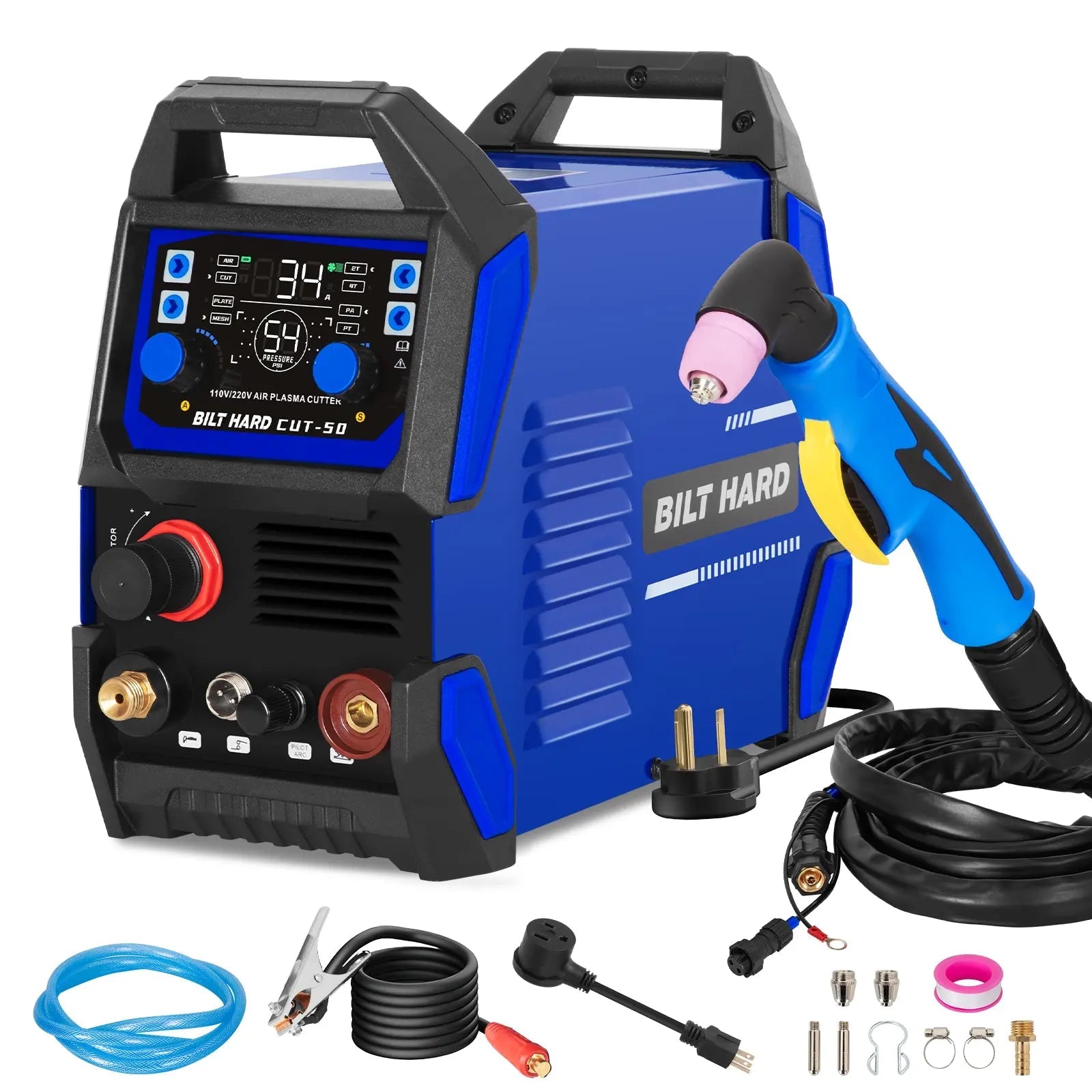

CUT-50 pilot arc plasma cutter for versatile cutting tasks.
- Accessories:
- 13.2ft (4m) AG60 torch
- 10ft (3m) work clamp
-
6ft (2m) transparent hose with sealant.
- Power cord adapter, hose clamps, connector, AG60 torch consumables.
- User manual for easy setup and guidance.
This plasma cutter is the ideal tool for professionals and DIY enthusiasts, offering superior performance, reliable safety, and effortless usability for cutting a wide range of metals.
Dual-Voltage Adaptability:
The power supply is 110V/220V (±15%) with automatic voltage compensation to maintain a stable voltage within the given range.
- At 110V, the rated power is 5.3KVA, the input current is 48.2A, and the output current range is 20 - 35A;
- At 220V, the rated power is 8KVA, the input current is 36.6A, and the output current range is 20 - 50A.

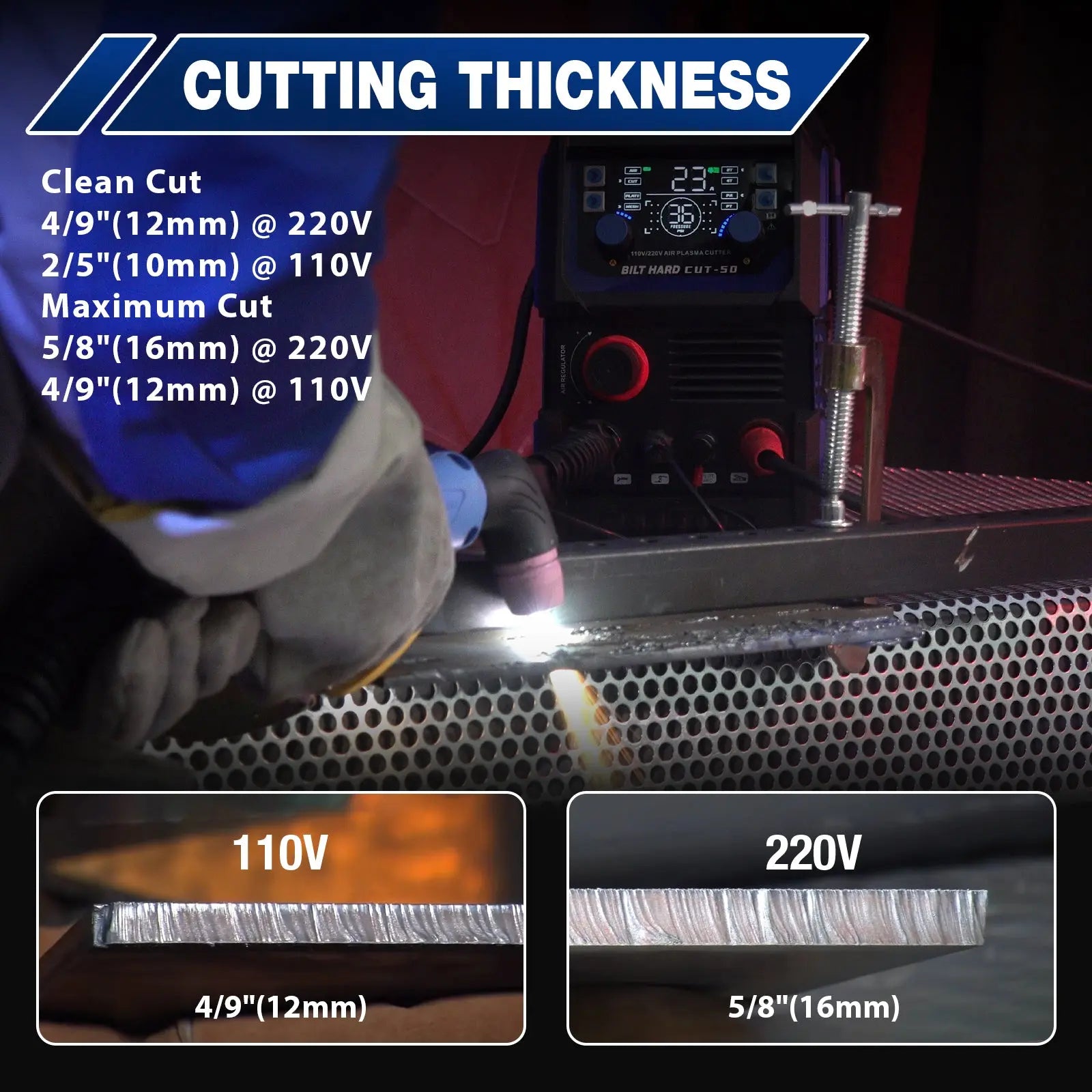

Clean Cutting and Maximum Cutting Thickness at Different Voltages:
- Under a 220V power supply, the clean cutting thickness can reach 12mm, and the maximum cutting thickness is 16mm (at 60psi air pressure).
- Under a 110V power supply, the clean cutting thickness is 10mm, and the maximum cutting thickness is 12mm (at 50psi air pressure).
High Duty Cycle:
- In an environment of 78°F (25°C), the 60% duty cycle corresponds to a 35A current at 110V and a 50A current at 220V.
Stable Output:
- The rated output voltage is 94V at 110V and 100V at 220V, with a no-load voltage of 330V for both. The efficiency reaches 85%, the insulation class is F, and the protection class is IP21S.
