Qysea Onshore Power Supply System For Underwater Drones

Qysea Onshore Power Supply System

You asked, they listened! Keeping their users' feedback at the forefront, Qysea has finally released their terrific Onshore Power Supply System! Traditionally, when the Qysea Fifish's battery is used up its operations must be interrupted in order to reel the Fifish all the way back to its user to then swap out its battery. But now, with the all new Onshore Power Supply, the Fifish can be charged while still performing its operations. (Please Note: This product is only compatible with the Qysea Fifish V6S and Pro V6 Plus underwater drones)

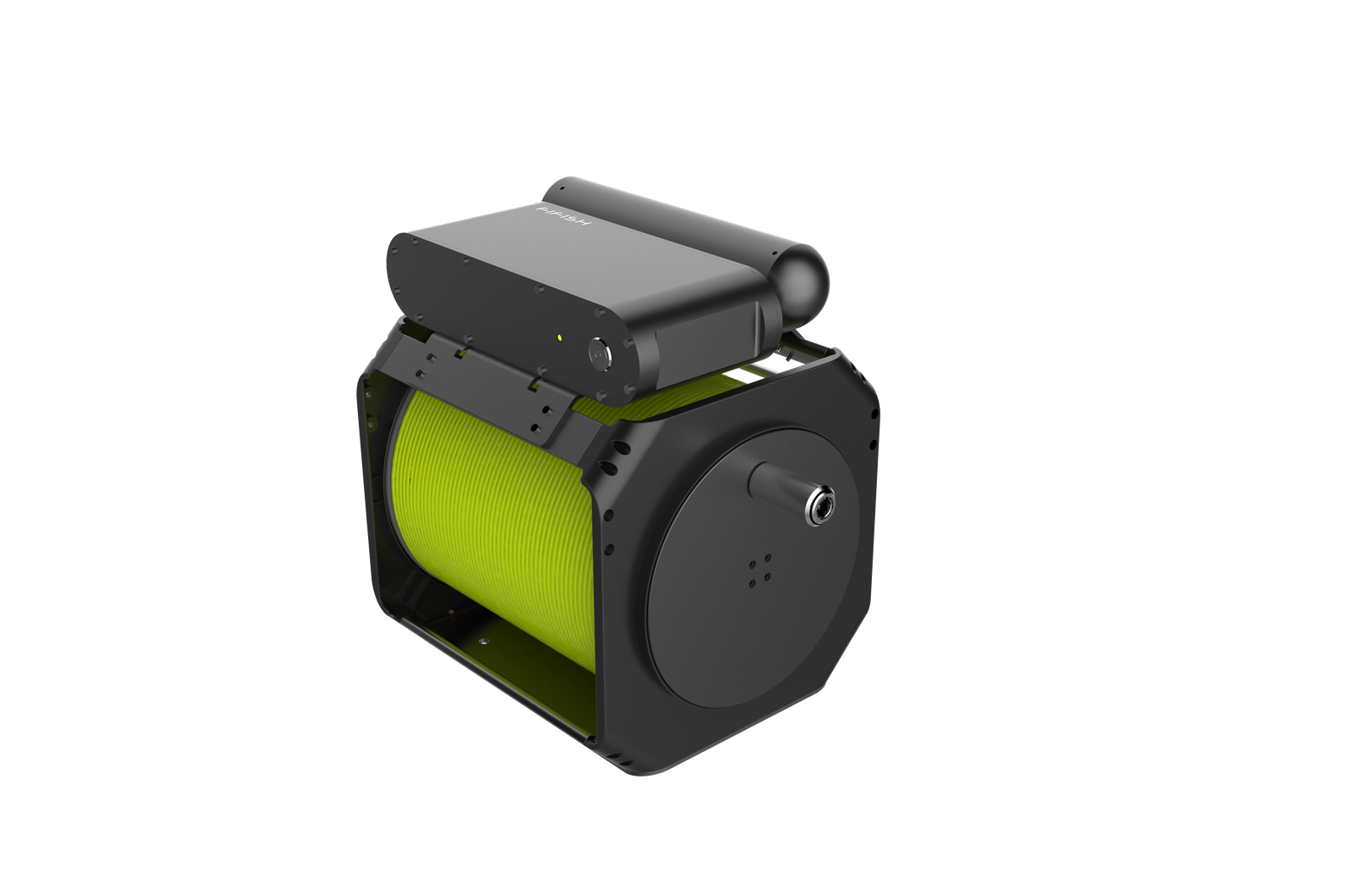

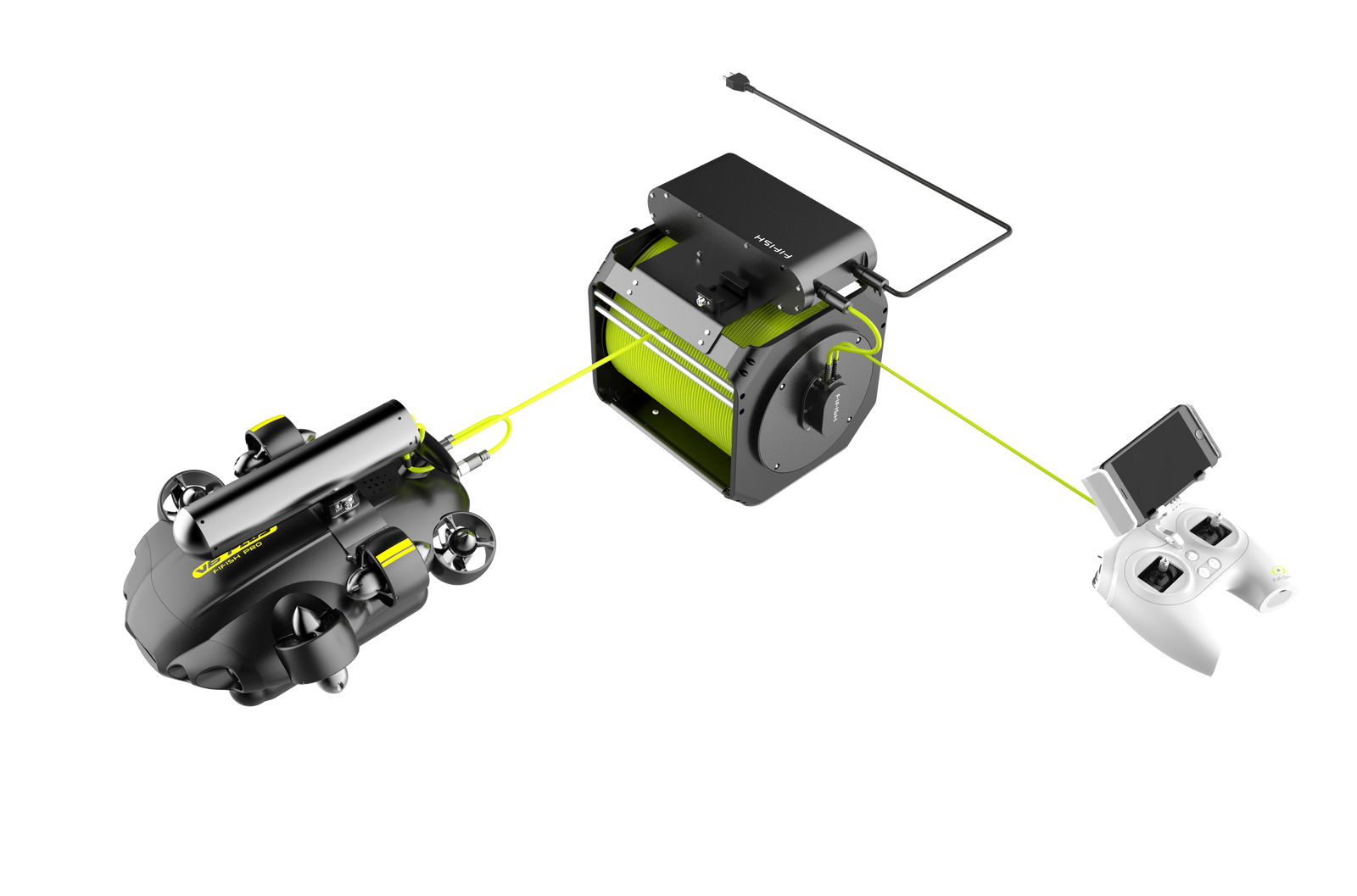

The system comes with a 200-meter tether a spool, one onshore power management module that is fixed atop of the spool, and one underwater charging module that is firmly installed onto the top of the Fifish.




Fast Charging at Long Distances

Marine biologists, aquaculturists, and treasure hunters alike will all appreciate this great charging system as it allows users to keep their drone operating AND charging while underwater up to 200-meters away from the shore or boat. Even more, Qysea's patented tether is especially designed to be quickly isolated from water to prevent any leakage. With 130W output power, this power supply system can restore your Fifish's battery up to 70% in just 1 hour.

Safe Underwater Charging

Qysea ensured that this power supply station was ready for any type of charging issue that might occur. Not only does the tether have an anti-leakage design, the system prevents overcharging, overheating, overcurrents, overvoltages, short circuiting, and users are protected against electric shocks, lightning discharge, and electromagnetic fields.

• • 1 x Underwater Power Charging Module with Bracket
  • 1 x Onshore Power Management Module with AC Cable
  • 1 x 200m Tether & Spool
  • 1 x Carrying Case
  • 1 x Instruction Manual
• SKU:
  QYS-OPPS

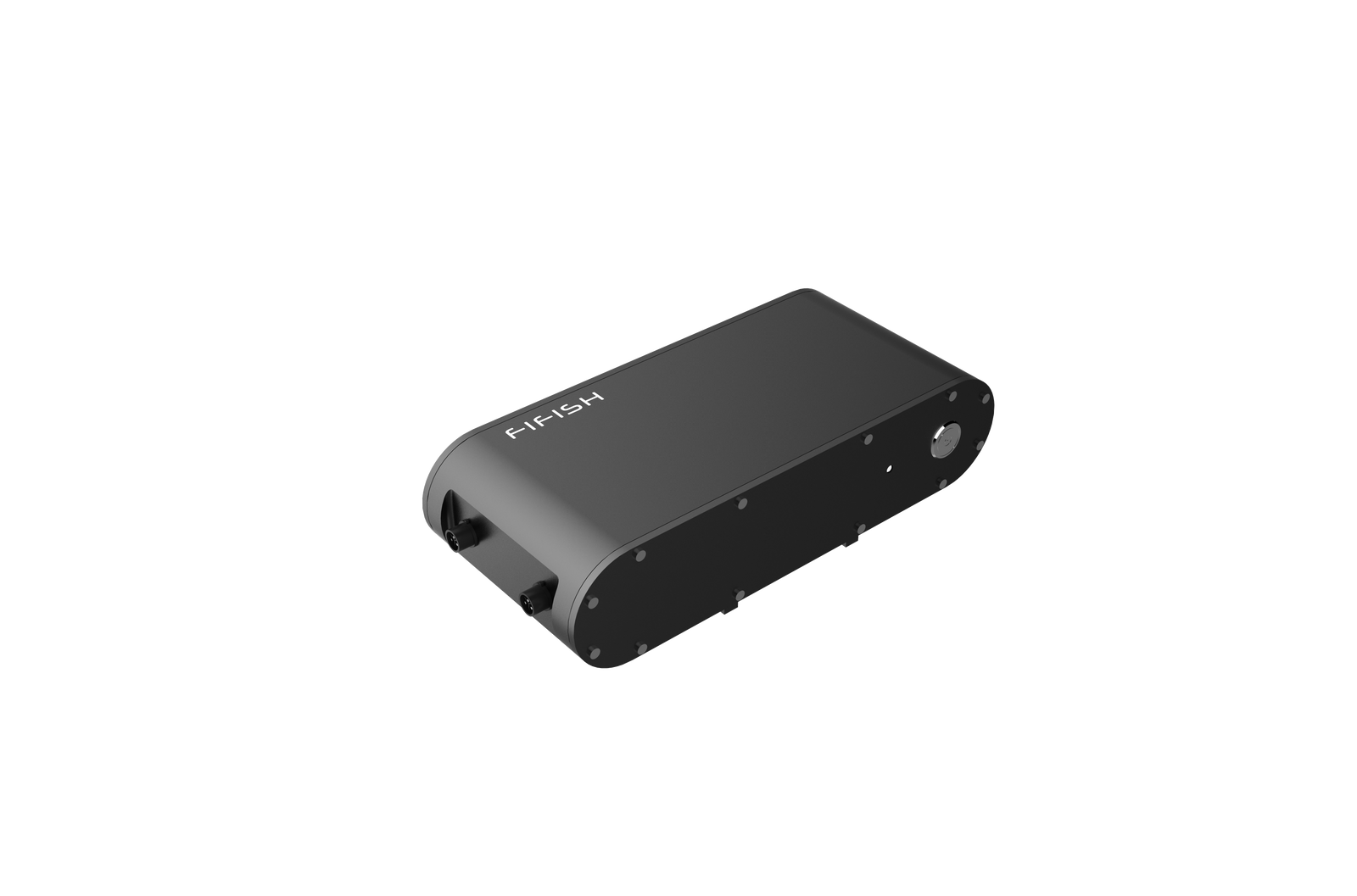

  Onshore Power Management System

  Dimensions (L x W x H in inches):
  10.7 x 4.8 x 2.95 (in cm: 27.2 x 12.2 x 7.5)

  Operating Temperature:
  -10 - 65°C (in °F: 14 - 149)

  Input:
  100-250VAC | 50/60Hz | Max 2A

  Output:
  180-250VAC | Max 2A

  Connection:
  Waterproof Plug

  Waterproof Rating:
  IP67

  Underwater Charging Module

  Dimensions (D x L in inches):
  2.3 x 10.2 (in cm: 5.8 x 26)

  Operating Temperature:
  -10 - 65°C (in °F: 14 - 149)

  Input:
  100-250VAC | 50/60Hz | Max 2A

  Output:
  12.6VDC | Max 10A

  Connection:
  Waterproof Plug

  Depth Rating:
  150m (492ft)

  Tether & Spool:

  Dimensions (L x W x H in inches):
  10.8 x 9.8 x 10.0 (in cm: 27.5 x 25 x 25.3)

  Tether Length:
  200m (656ft)

  Tether Diameter:
  5.8mm

  Breaking Force:
  160kgf (1569 Newtons)

  Waterproof Rating:
  1P67

  Return Policy:
  Products that have been used in the water cannot be returned, except if they are deemed defective upon inspection.
