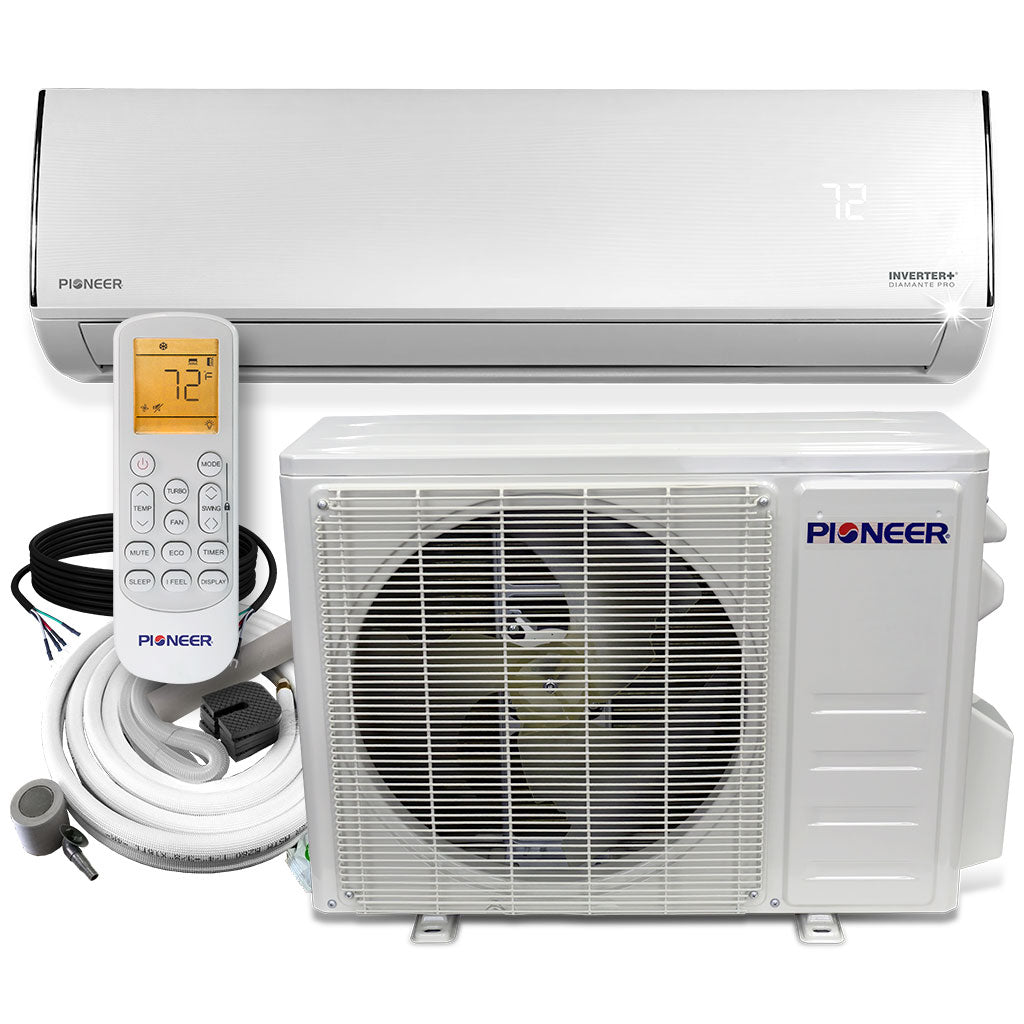

Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit

Overview

Summary

• High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
• Heating capacity: 12,200 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

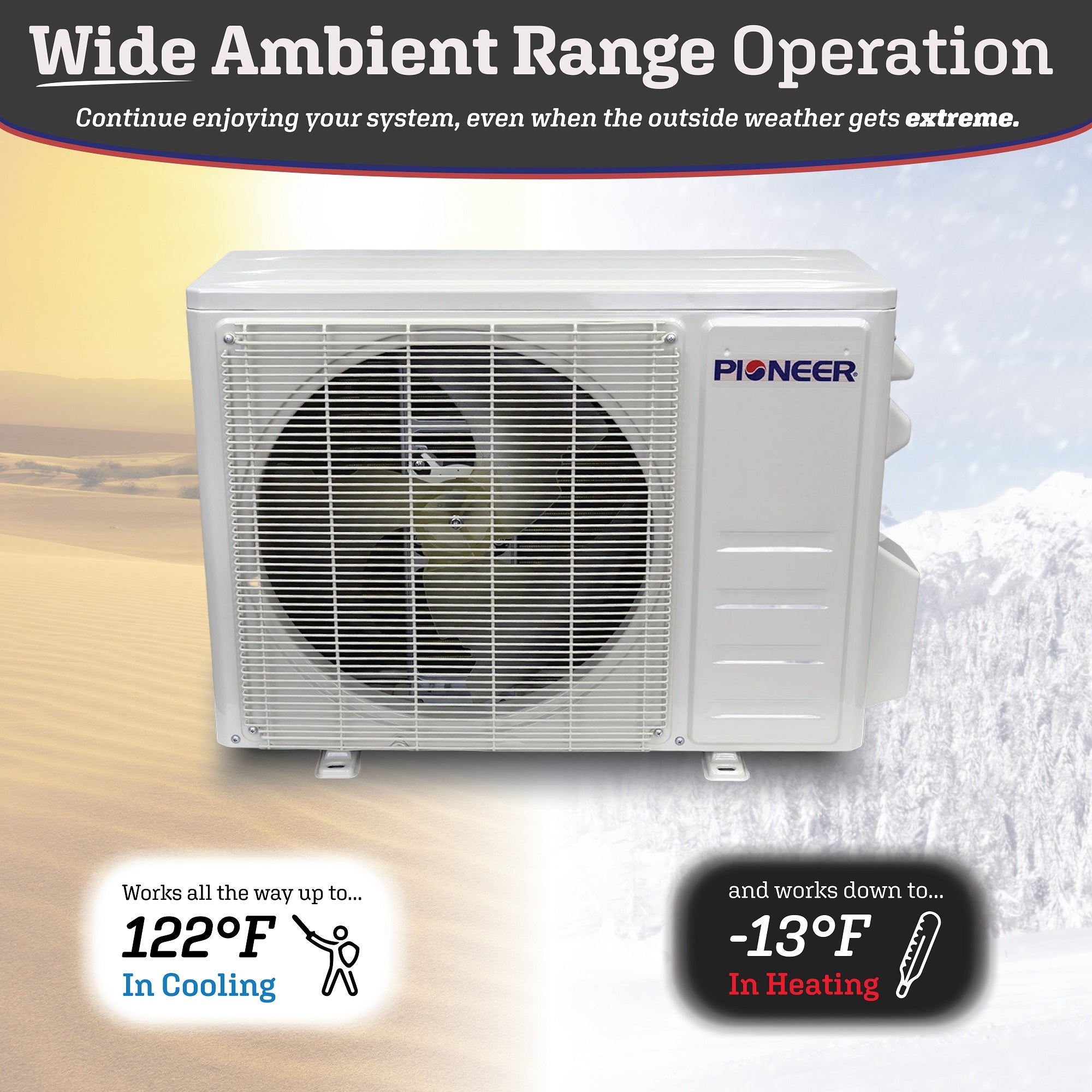

• Low Ambient Unit (-13°F)
• AHRI Estimated Annual Operating Costs:
• Cooling: $79.00
• Heating: $254.00

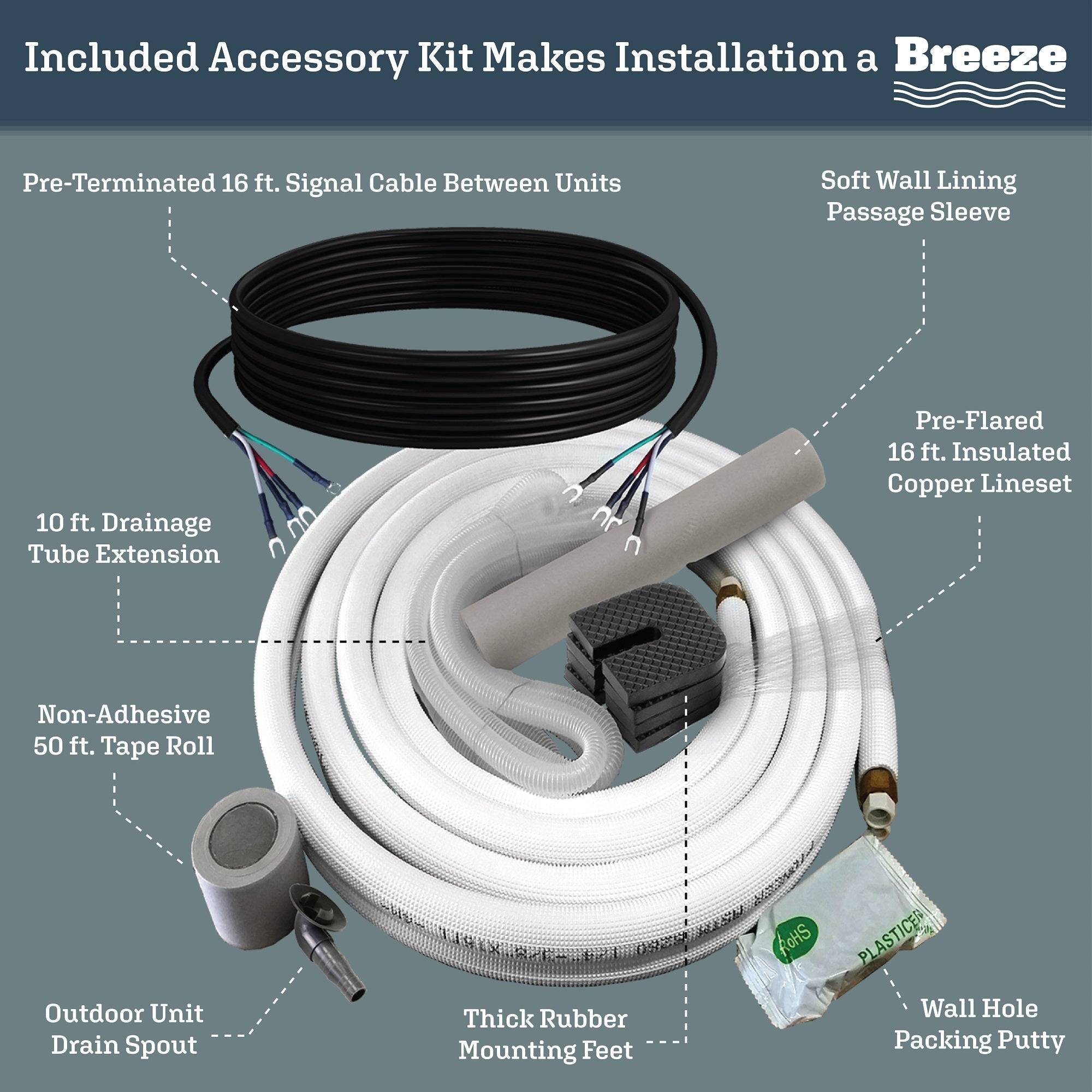

What's Included

• Indoor Unit
• Outdoor Unit

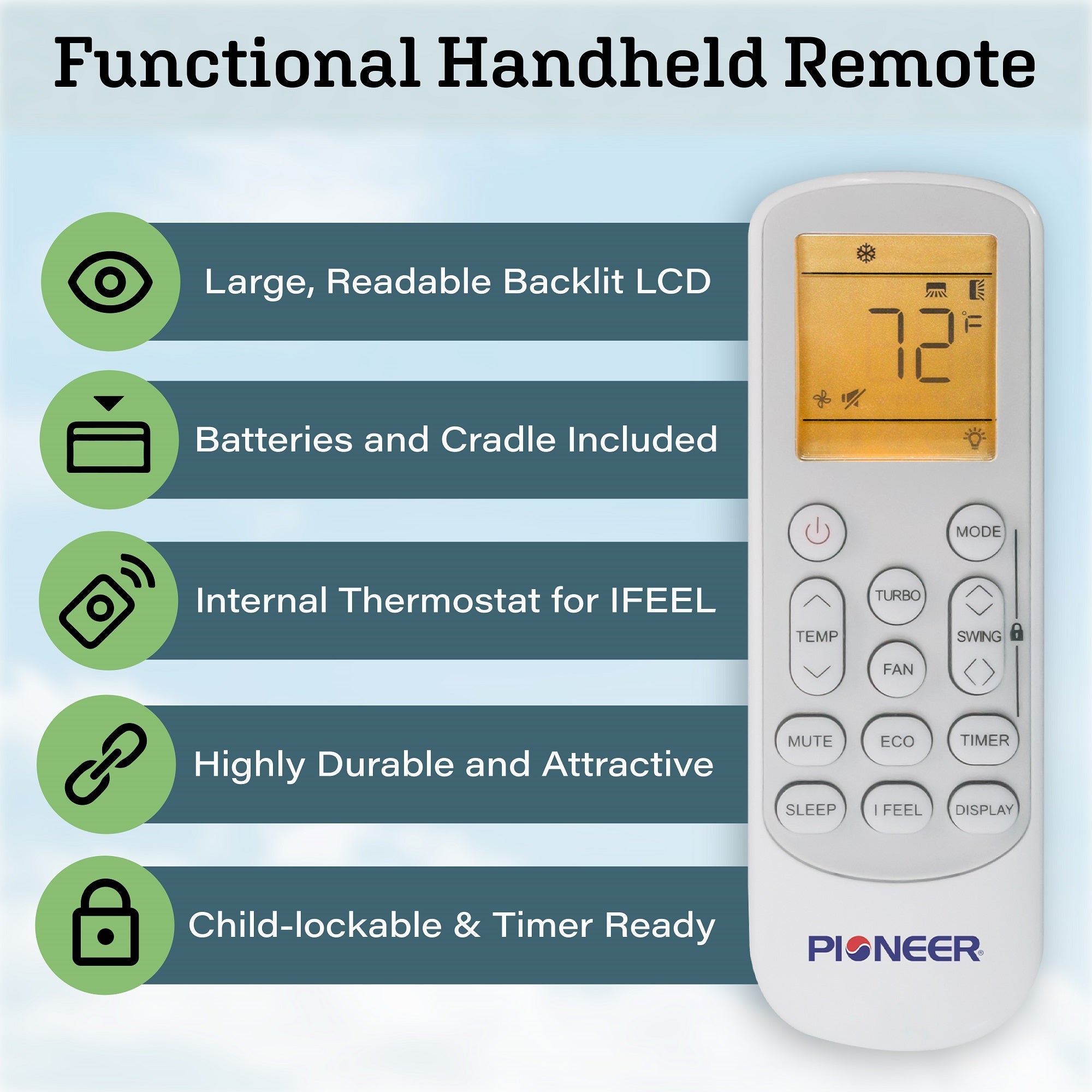

• Wireless Remote Control (with wall holder and batteries)
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Our Guarantee

• 5 years Warranty for Parts
• 5 years Warranty for Compressor

Features

Technical Information

Performance Data

• Power Supply: 110~120V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h
• Cooling Capacity Range: 3,600~13,200 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 10.0 BTU/W.h
• Heating Rated Capacity: 12,200 BTU/h
• Heating Capacity Range: 3,700~13,500 BTU/h
• Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
• Refrigerant Type: R410A
• Suitable Area: 200~450 Sq.F

Indoor Unit Data

• Part Number: WT012ALFI19HLE
• Air Flow (Hi/Med/Lo): 383 / 318 / 253 CFM
• Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
• Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
• Carton Dimensions (WDH): 34-7/8  x 11 x 14-3/8 Inches
• Net / Gross Weight: 19.8 / 26.5 lbs

Outdoor Unit Data

• Part Number: YN012ALFI19RPE
• Breaker Needed: 20A (single-pole)
• Sound Level: 52 dB(A)
• Net Dimensions (WDH): 28-1/8 x 11-1/2 x 19-5/8 Inches
• Carton Dimensions (WDH): 33 x 13-1/4 x 21-5/8 Inches
• Net / Gross Weight: 55 / 66.1 lbs
